LCR Circuit

Home

        Calculate:   Series LCR Circuit      Output Format        Notes

Definition:

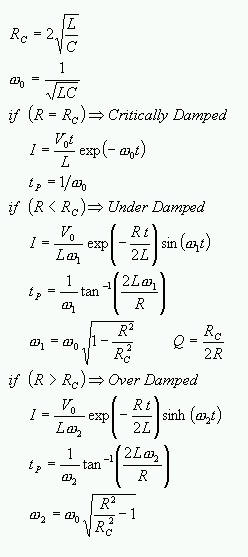

Equations

Parameters

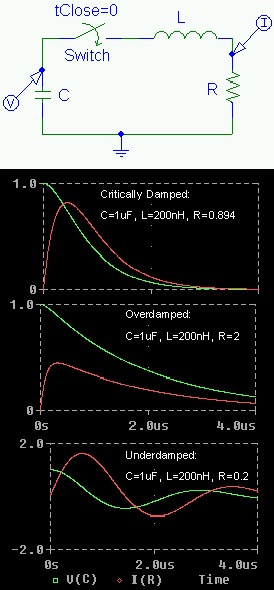

Diagram

Series LCR Circuit:                                                      top



Parameter

Value

Units

Special Values

Inputs:

V0 (initial capacitor voltage)
L (inductance)
C (capacitance)
R (resistance)
ts (sample time)


Outputs:

w0 (natural frequency)

Rc (critical resistance)

Damping Condition


Ip (peak current)

tp (time of peak)

I(sample current)


w1 (underdamped freq.)

Q (quality factor)



Output Format:                                                        top

Select Format: Scientific Engineering Fixed



Notes:                                                                       top

Several errors in equations and code fixed on 31May06.

 Source:  Ron Boller and various.
