Critical Current in Pinched Beam Diode Applet

Pulsed Power Home Applet Index

        Calculate:   Current      Output Format        Notes

Definition:

Equation

Parameters

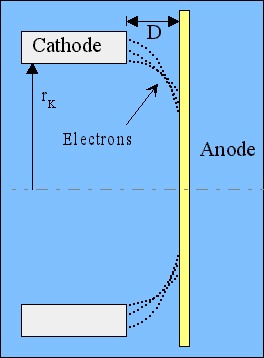

Diagram

Calculate Critical Current Pinched Beam Diode:              top

Parameter

Value

Units

Special Values

Inputs:

 V (voltage)
a (factor) 1.45 no ions, bigger w/ions
D (AK gap)
rK (cathode rad.)


Outputs:

ICRIT (current)

Z (impedance)



Output Format:                                                        top

Select Format: Scientific Engineering Fixed



Notes:                                                                       top

(from Particle-in-cell simulations of high-power cylindrical electron beam diodes by S.B. Swanekamp, et.al., Physics of Plasmas Vol.7, December 2000)
