High Voltage Inductor Applet

Pulsed Power Home Applet Index

        Calculate:   Inductor      Output Format        Notes

Definition:

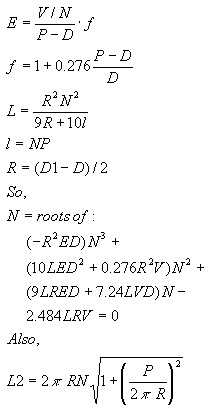

Equations

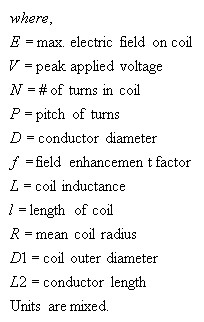

Parameters

Diagram

Calculate Coil Attributes:              top

Parameter

Value

Units

Special Values

Inputs:

 inductance, L [µH]
coil outer diameter, D1 [in.]
conductor diameter, D [in.]
max. electric field, E [kV/cm]
peak applied voltage, V [kV]
eff. pulse duration, T [µs]





 <- - Press button to calculate outputs.



Outputs:

# of turns, N

#
coil pitch, P

[in.]
coil length [in.]
conductor length [in.]
%JCM breakdown in oil %
  %JCM breakdown in water %
stressed area, A [cm2]



Output Format:                                                        top

Select Format: Scientific Engineering Fixed



Notes:                                                                       top

Source:   J.R. Boller, "Design of High Voltage Coils", NRL Technote #85-20, 1985

The "Calculate" button is used here because Newton's method, an iterative approach, is used to solve for N and so each calculation can take a significant amount of time and in some cases no solution may be found.

The equation for JCM breakdown is not given here due to space constraints, but can be found elsewhere at this site.
