Penetration Depth

Penetration Depth Applet

Pulsed Power Home Applet Index

        Calculate:   Penetration Depth      Output Format        Notes

Definition:

Equation

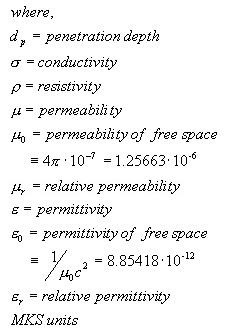

Parameters

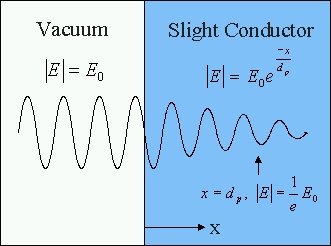

Diagram

Calculate Penetration Depth:                                    top

Parameter

Value

Units

Special Values

Inputs:

 er (rel. permittivity)
r (resistivity)
mr (rel. permeability) 1 for most media


Output:

dp (penetrat.  depth)

Output Format:                                                        top

Select Format: Scientific Engineering Fixed

Notes:                                                                       top

  • This formula applies to slight conductors.

  •  Equal to the inverse of the complex component of the wave number, ki.

  •  Relative permittivity = dielectric constant.

  • Equals the distance over which an incident wave decays to 1/e it's initial amplitude.

  •  A conductor is "slight" when:

  •  Source:  Applied Electromagnetism Second Edition by Liang Chi Shen and Jin Au Kong, PWS Publishers, Boston, Massachusetts 1987
