Delta-Sigma ADC Applet

Pulsed Power Home Applet Index

        Goto:   Calculations      Output Format        Notes

Definition:

Equation

Parameters

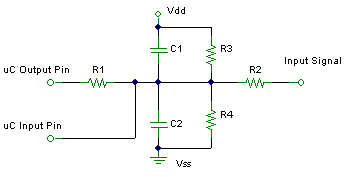

Diagram

Calculate Properties of a 1-bit ΣΔ ADC:              top

Parameter

Value

Units

Note

Inputs:

R1 (feedback resistor)
R2 (input resistor)
  R3 (pull-up resistor)
  R4 (pull-down resistor)
FClk (uC clock frequency)
N (#bits in sample)
  Vdd (uC supply)


Outputs:

VMax (max. input voltage)

VMin (min. input voltage)

  VRange  (|VMax-VMin|)   =Vdd*R2/R1
  TS (sample period)
  FS (sample rate)
  FN (sample Nyquist freq.)




Output Format:                                                        top

Select Format: Scientific Engineering Fixed

Notes:                                                                       top
